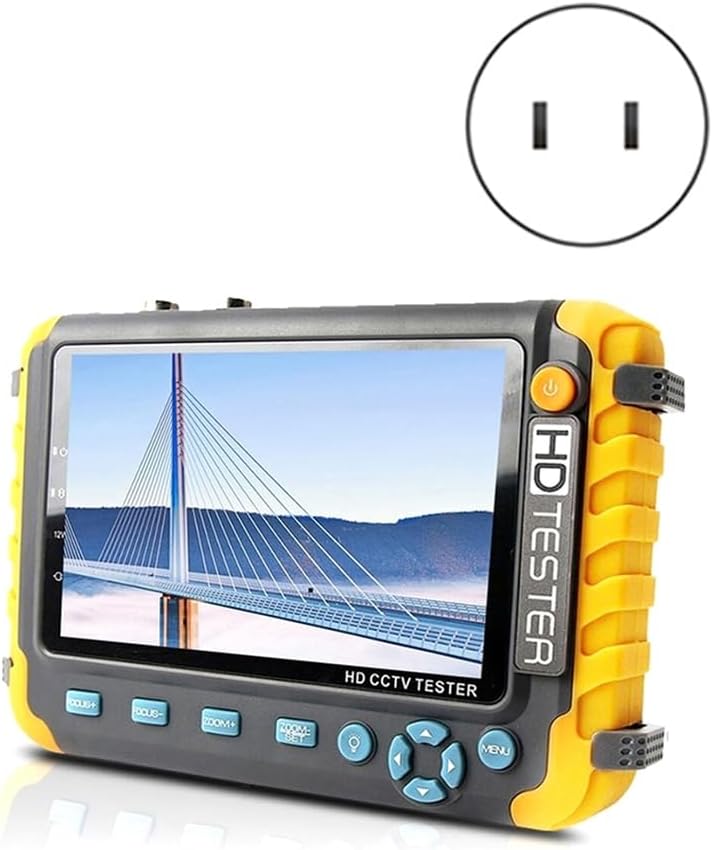

Advanced 8MP CCTV Camera Tester IV8W, HD 5-Inch Monitor for AHD/CVI/TVI/CVBS, Security Tool with US Plug

Hign-concerned Chemical:NoneDisplay screen:5.0 inch 800*480 resolution TFT-LCDAHD camera test:Support 720P/1080P3MP/5MP/8MPCVI camera test:Support 720P/1080P3MP/4MP/5MP/8MPTVI camera test:Support 720P/1080P3MP/5MP/8MPIPC camera testNot support:HD/VGA input 1920X1080 video inputVideo input:1ch Analog signal inputBNC output:support PAL / NTSC formats standard outputUTP Cable Tester:Support RJ45 cable testLED lampSupport:DC 12V/1A output for cameraBaud Rate:600,1200, 2400, 4800, 9600,14400bpsThe product appearance and printed words depending on the batch, but this does not affect use.Plug Type:US Plug, it applies to Canada, India, Mexico, Thailand, Taiwan, the , the Philippines and so on.Voltage:AC110VColour:As ShownMaterial: ABSPackage Contents:1 * Camera Tester1 * adapterOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

• PTZ controller: Video monitor tester built-in Pelco-D / P PTZ control protocol,etc., through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus,aperture size
• IV8W Application: The new HD Coaxial tester is developed for the on-site installation and maintenance of Analog Camera (CVBS) and HD Coaxial Camera, having AHD. (NOT Support IP Camera). It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, VGA video signal input, HDMI1.0 signal input, RS485 data searching, cable testing, LED lamp etc
• HD & VGA Input: VGA/HD Input,it support VGA/HD1:1 compliant digital input,once connect VGA/HDvideo,please switch to select VGA/HD Mode,The maximum resolution is 1920*1440. Video monitor tester, High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality. Support PAL/NTSC standard video signal
• DC12V 1A output power for camera: The tester support DC12V (1A) power output for camera. It is helpful for demo and testing when the power supply is
