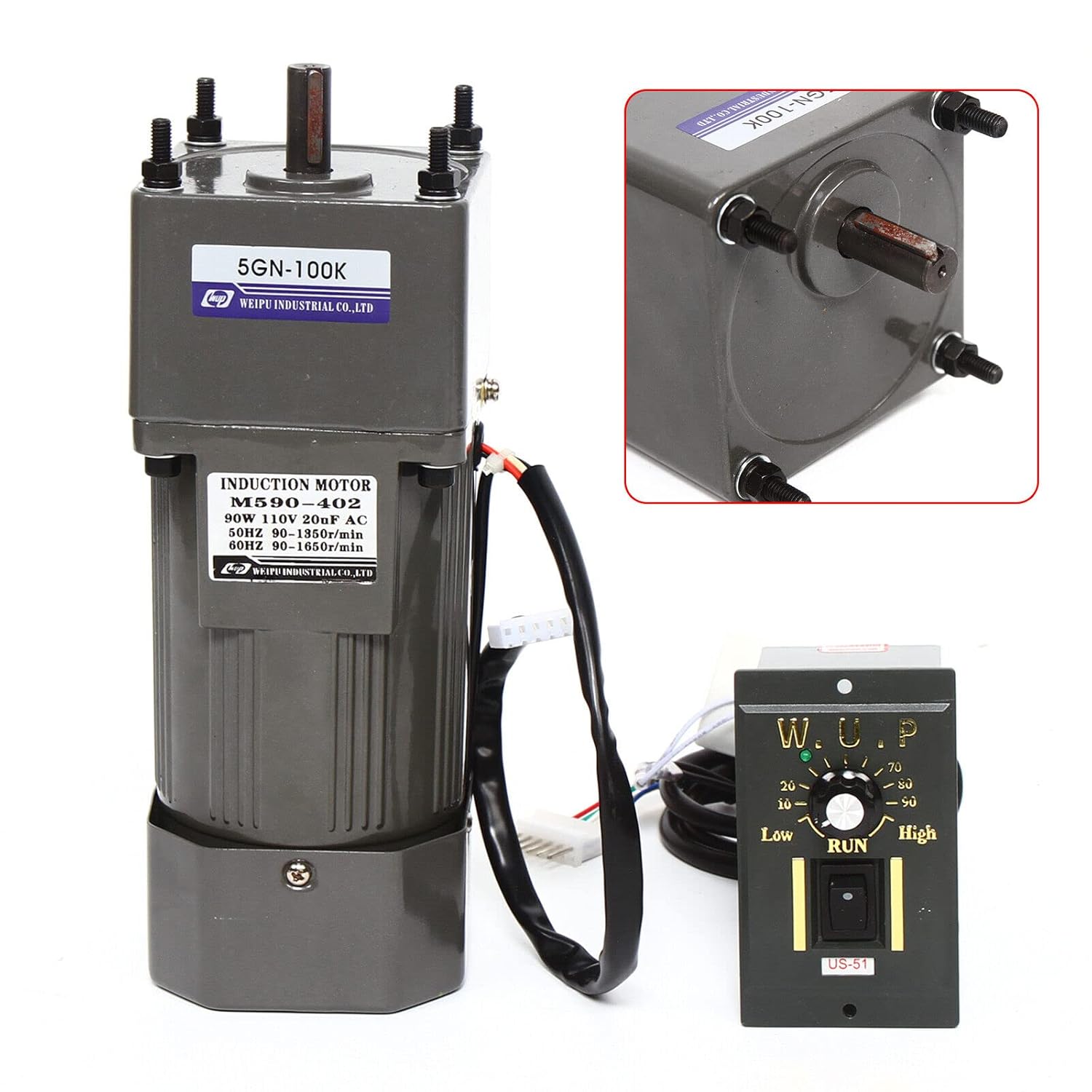

AC Gear Motor Reducer, 110V 90W 100K Electric Single-Phase Gear Motor Reversible Motor with Variable Speed Adjustable Controller Governor Geared Motor 0-13.5RPM

Specification:Name: AC Gear MotorRated Voltage: 110VRated Speed: 0-13.5 RpmReduction Ratio: 1:100（100k）Torque: 24nmPower Phase: Single-phaseShaft Diameter：12mmGeared Motor Size：164mm * 90mm *74mmReducer Size: 61*90*74mmFeatures:Flexible InstallationEfficient WorksTorque LargeSmooth OperationLong Working LifePacking List:1 X Motor1 X Reducer1 X Speed ControllerNote: Under Different Deceleration Ratio, the Output Shaft Speed Is Different. the Output Shaft Speed Is Equal to the Motor Speed of 1350 Rpm Divided by the Deceleration Ratio.

• ✅ High Efficiency: The variable-speed gear motor boasts a robust power of 90W, a reduction ratio of 100K, and a rotating speed of 13.5RPM, which provide you with strong power and meet your different requirements.
• ✅ Durable and Sturdy: It adopts pure copper coils and an alloy shell, with excellent heat resistance and heat dissipation, allowing you to use it for a long time. The die-casting process and the heat treatment process can ensure quality and provide a longer service life.
• ✅ Efficient Cooling System: The cooling holes on the bottom of the motor and the ventilated fan heat sink are designed to keep it cool and provide high reliability and durability.
• ✅ Dual Rotation Design: It supports forward and reverse rotation that can be achieved by changing the position of the speed controller wiring, so you can adjust the rotational direction according to the specific situation to meet your various needs.
• ✅ Stable Operation: All alloy gears with hob-shaving process, ball bearings, and pure copper coils can reduce friction and temperature during use, ensuring stable operation, increasing speed, and reducing overheating and load resistance.
• ✅ Closed Design: The closed design effectively prevents dust, water, oil, etc. from entering the machine, while minimizing the need for daily maintenance as much as possible.
• ✅ Low Noise: The noise emitted by the pure copper motor during operation is only about 50 decibels, which does not easy to affect you or others.
